Introducing the all-new Yokohama GEOLANDAR A/T XD. A commercial grade all-terrain all weather tire engineered to provide outstanding on- and off-road durability for full size pickup trucks and commercial vans all year round.

FIND YOUR
NEXT TIRE WILL THIS FIT
MY VEHICLE?
Benefits

GEOLANDAR A/T XD:
Enhancing
Performance
with Unmatched
Benefits

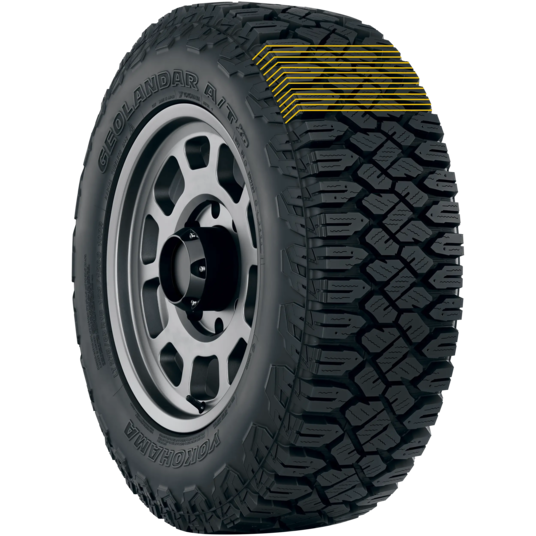

WIDE, FLAT PROFILE
Distributes stresses more evenly across the entire tread area to maximize even wear.
Benefits

GEOLANDAR A/T XD:
Enhancing
Performance
with Unmatched
Benefits

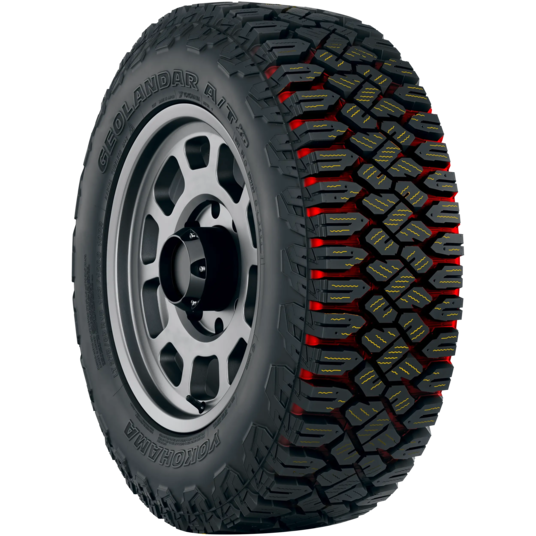

AGGRESSIVE TREAD DESIGN
Hundreds of wavy sipes combined with an optimized void to lug ratio provide powerful all-weather traction.
PINNED FOR #15 STUDS
Add optional studs for confident winter traction.
Benefits

GEOLANDAR A/T XD:
Enhancing
Performance
with Unmatched
Benefits

GEO-SHIELD™ TECHNOLOGY
A 3-ply sidewall, full nylon cap, and high turn-up carcass assure merciless traction and reliable protection.
SIDEWALL ARMOR
Creates a bold new look and provides protection from lateral impacts.
Benefits

GEOLANDAR A/T XD:
Enhancing
Performance
with Unmatched
Benefits

HIGH DENSITY COMPOUND
The optimized compound has a high level of natural rubber to provide long tread life and enhance cut and chip resistance.
MUD AND STONE EJECTORS
Lateral protrusions in the void area protect against stone drilling, keep the grooves clear and prevent block tearing.

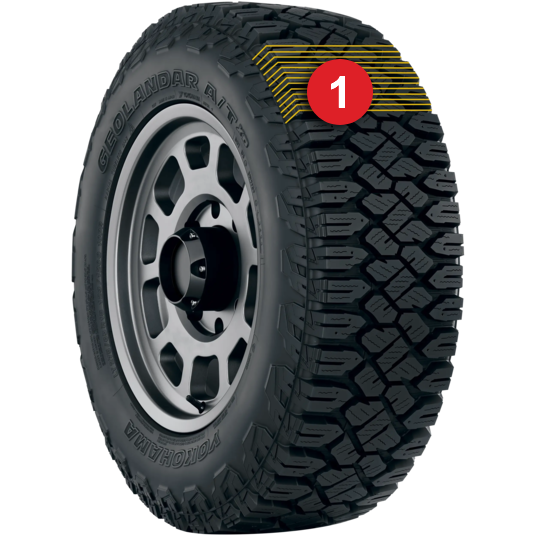

1. WIDE, FLAT PROFILE
Distributes stresses more evenly across the entire tread area to maximize even wear.

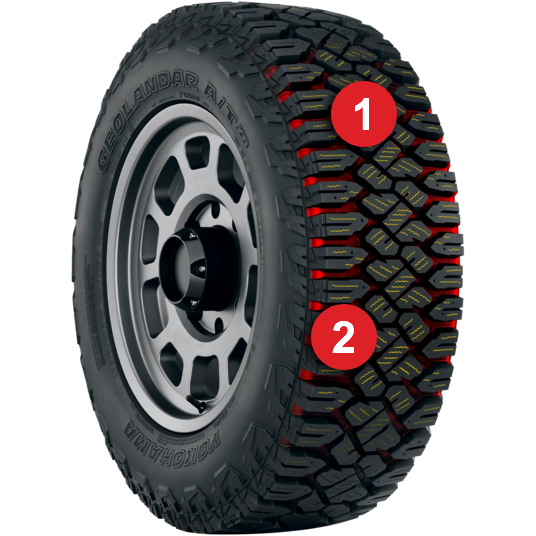

1. AGGRESSIVE TREAD DESIGN
Hundreds of wavy sipes combined with an optimized void to lug ratio provide powerful all-weather traction.
2. PINNED FOR #15 STUDS
Add optional studs for confident winter traction.

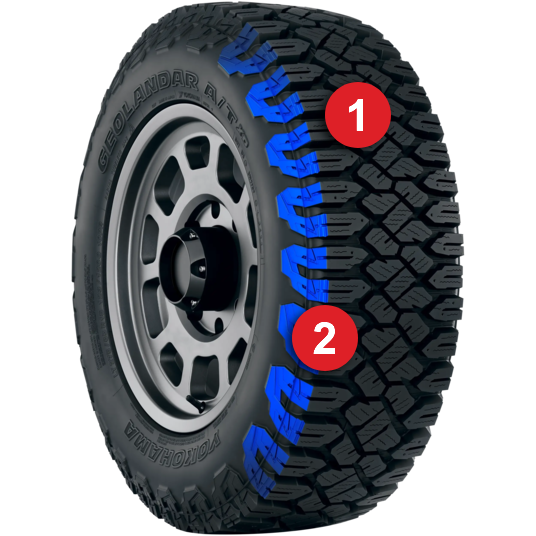

1. GEO-SHIELD™ TECHNOLOGY
A 3-ply sidewall, full nylon cap, and high turn-up carcass assure merciless traction and reliable protection.

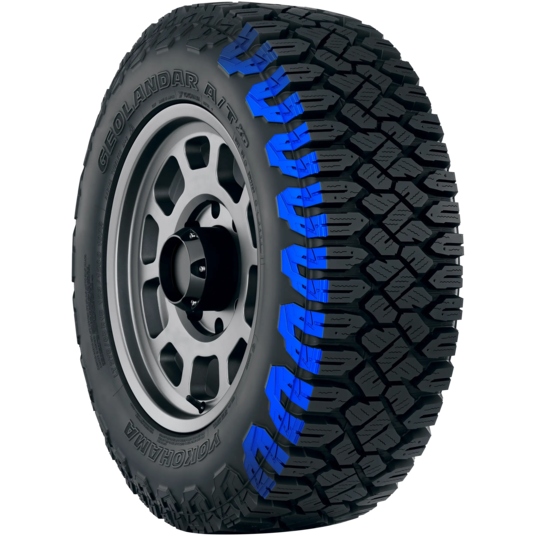

2. SIDEWALL ARMOR
Creates a bold new look and provides protection from lateral impacts.
1. HIGH DENSITY COMPOUND
The optimized compound has a high level of natural rubber to provide long tread life and enhance cut and chip resistance.
2. MUD AND STONE EJECTORS
Lateral protrusions in the void area protect against stone drilling, keep the grooves clear and prevent block tearing.
Specs

GEOLANDAR A/T XD: Key Specifications Overview DOWNLOAD
SPECS SHEET

Tire Sizes by Wheel Diameter
TIRE SIZES PART NUMBER Load I.D. UTQG RATING UNIT WEIGHT
(LBS) 		RIM WIDTH
(IN) 		INFLATED DIMENSIONS
(IN) 		TREAD WIDTH
(IN) 		TREAD DEPTH
(32/IN) 		LOADED DIMENSIONS
(IN) 		MAX LOAD AT
COLD INFLATION PRESSURE
SINGLE (LBS @ PSI) 		TYPE
MEAS. APPR. OVERALL WIDTH OVERALL DIAMETER STATIC RADIUS REV/MILE
LT215/85R16 115/112Q E RBL 110117101 SL 42.30 6.00 5.50 - 7.00 8.5 30.6 6.5 18 13.7 680 2680 @ 80 RBL (BW)
LT225/75R16 115/112Q E RBL 110117102 SL 42.50 6.00 6.00 - 7.50 8.7 29.4 7 18 13.2 707 2680 @ 80 RBL (BW)
LT235/85R16 120/116Q E RBL 110117103 SL 49.80 6.50 6.00 - 7.50 9.3 31.8 7.4 18 14.2 654 3042 @ 80 RBL (BW)
LT245/75R16 120/116Q E RBL 110117104 SL 48.30 7.00 6.50 - 8.00 9.7 30.5 7.8 18 13.6 682 3042 @ 80 RBL (BW)
LT265/75R16 123/120Q E RBL 110117105 SL 54.20 7.50 7.00 - 9.00 10.6 31.7 8.4 19 14.1 656 3415 @ 80 RBL (BW)
